KFS-1
KFS-1

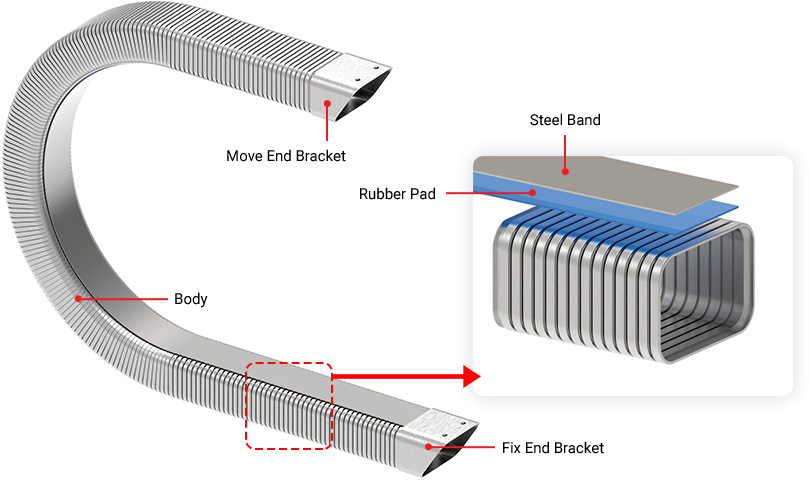

Basic Specification
| Material | Steel or Stainless |
|---|---|
| Speed | 5m/s |
| Acceleration | 8m/s² |
| Temperature | -50℃~200℃ |
| Machine tools. Automations machines, Medical equipment. | |

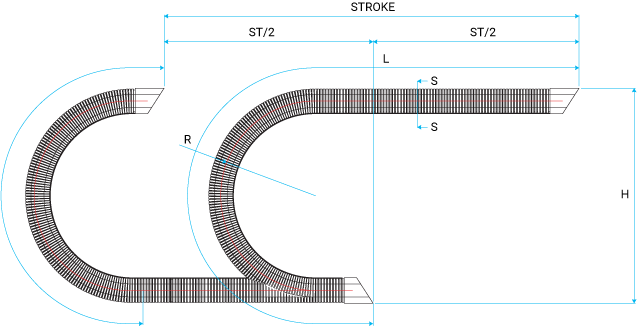

Assembly
- ST
-
Total machine travel (Stroke)장비의 이동거리
- L
-
Length of the drag chain케이블 베어 길이
- R
-
Radius of the drag chain케이블 체인의 곡률
- H
-
Height of the drag chain when installation on field케이블 베어 설치시 높이
Section S+S
Order Form
| Type | Boundary Type | Radius | Length | Bracket Setting |
|---|---|---|---|---|
| KFS-1 | 1K | R60 | 1,500L | FAU/FAU |
| Form | 0K | 0-1K | 1K | 1K-1 | 2K | 2K-1 | 2K-2 | 3K | 4K | 4K-1 | 5K | 5K-1 | 6K | 6K-1 | 7K | 8K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outer Boundary A×B (m/m) |
20×30 | 25×60 | 30×50 | 50×50 | 45×85 | 50×95 | 60×85 | 60x115 | 80×115 | 80×170 | 90×140 | 95×170 | 110×175 | 50×190 | 100×200 | 100×220 |
| Inner Boundary C×D (m/m) |
16×26 | 20×55 | 23×43 | 45×45 | 41×81 | 45×90 | 55×80 | 55×110 | 74×109 | 72×162 | 85×135 | 88×162 | 104×170 | 45×185 | 92×192 | 102×212 |
| Radius R±10% (m/m) |
55 | 60 | 60 | 120 | 110 | 125 | 130 | 130 | 170 | 170 | 180 | 210 | 250 | 125 | 250 | 250 |
| Weight (kg/m) | 0.6 | 1.1 | 1.5 | 1.8 | 2.9 | 3.7 | 3.9 | 4.5 | 4.9 | 5.6 | 6.8 | 7.2 | 7.6 | 7.7 | 7.8 | 8.1 |
