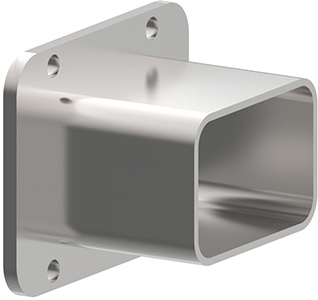

Flange KB Type
KC Series
Flange KB Type
Flange KB Type
Dimension List
| Form |
A |
B |
E |
I |
F |
G |
K |
M |
N |
L |
T |
| 0K |
37 |
27 |
30 |
43 |
52 |
67 |
7 |
27 |
17 |
30 |
2.0 |
| 0K-1 |
67 |
32 |
60 |
48 |
62 |
97 |
7 |
57 |
22 |
35 |
2.0 |
| 1K |
57 |
37 |
50 |
53 |
67 |
87 |
7 |
47 |
27 |
35 |
2.0 |
| 1K-1 |
54 |
54 |
60 |
60 |
80 |
80 |
7 |
47 |
47 |
35 |
2.0 |
| 2K |
92 |
52 |
80 |
71 |
91 |
121 |
10 |
81 |
41 |
60 |
2.0 |
| 2K-1 |
102 |
57 |
90 |
76 |
96 |
131 |
10 |
91 |
46 |
60 |
2.0 |
| 2K-2 |
92 |
67 |
80 |
85 |
105 |
121 |
10 |
81 |
59 |
60 |
2.0 |
| 3K |
122 |
67 |
110 |
85 |
105 |
150 |
10 |
110 |
55 |
60 |
3.0 |
| 4K |
122 |
87 |
110 |
105 |
125 |
150 |
10 |
110 |
75 |
60 |
3.0 |
| 4K-1 |
179 |
89 |
165 |
110 |
130 |
215 |
10 |
165 |
75 |
70 |
3.0 |
| 5K |
149 |
99 |
130 |
120 |
140 |
175 |
10 |
135 |
85 |
70 |
3.0 |
| 5K-1 |
179 |
104 |
165 |
125 |
145 |
215 |
10 |
165 |
90 |
70 |
3.0 |
| 6K |
184 |
119 |
170 |
140 |
160 |
220 |
10 |
170 |
105 |
80 |
3.0 |
| 7K |
212 |
112 |
197 |
130 |
152 |
247 |
10 |
197 |
97 |
80 |
3.0 |
| 8K |
232 |
112 |
217 |
140 |
162 |
267 |
10 |
217 |
107 |
80 |
3.0 |
